DAMPERS

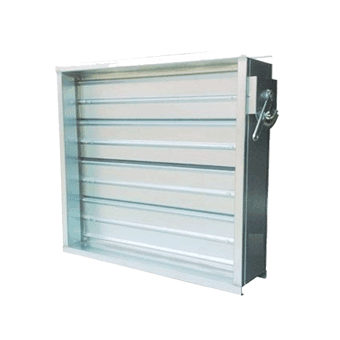

Volume Control Damper
- Opposed & Parallel blade construction.
- Low leakage characteristics.
- Available in G.I./Aluminium construction.
- Finish: Raw finished.
Motorized Volume Control Damper
- Available in G.I. / Aluminium construction.
- Low leakage characteristics.
- Available in fusible link and motorized control options.

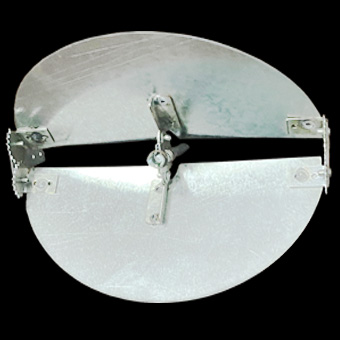

Butterfly Damper
- Blades are controlled with a T-screw driver.
- Low- leakage through robust design.
- Can be operated manually.
- A wide range of sizes dia 450, 400, 375, 315, 300, 275, 250, 200, 150 mm are available (Size available also on client demand).
- Manufactured with aluminium and galvanized sheet.

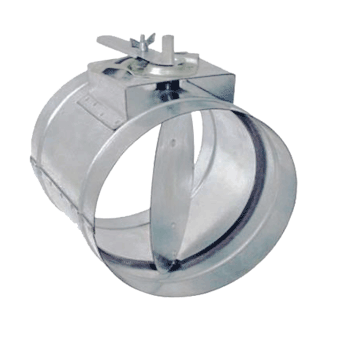

Round Butterfly Damper (Manual & Motorized)
- Frame & Damper constructed of heavy gauge galvanized sheet.
- Open and close end stops 90-degree rotation.
- Adjustable blades mounted on brass bushes.
- One‐piece construction that increases rigidity and strength.
- Manual locking quadrant or motorized control shaft.
- 12mm X 12mm square drive shaft (for motorized).
- 8mm X 8mm square drive shaft (for manual).
- Sizes available on client’s demand.

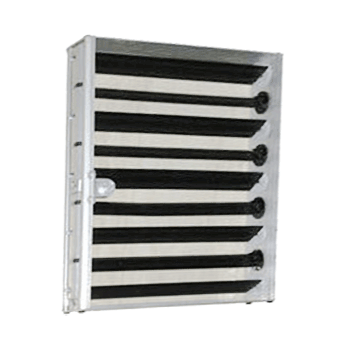

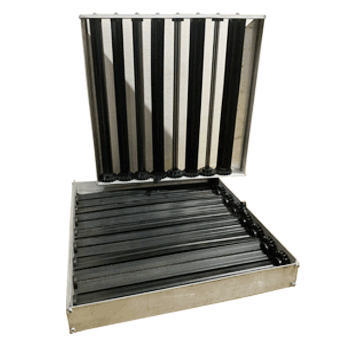

Al - Collar Damper
- Designed with an opposed blade to ensure regulation of air.
- Opening mechanism with T-screw or directly from the face of grilles & Diffuser.
- Made with bushes and introduced new PVC Girari for more smoothness.
- Manufactured in aluminium.
- Finish: Raw finished.

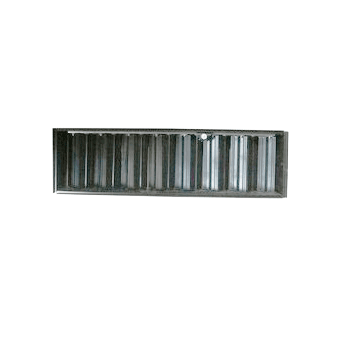

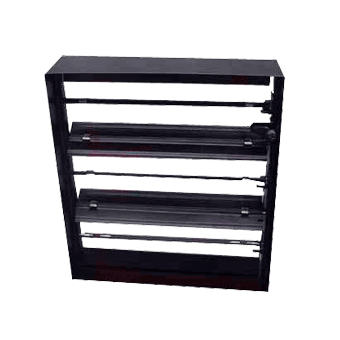

Ms - Collar Damper
- Designed with an opposed blade to ensure regulation of air.
- Opening mechanism with T-screw or directly from the face of grilles & Diffuser.
- Manufactured in G.I. / MS.
- Finish: Painted.
